New Holland

New Holland will introduce the first Tier 4 Final compliant mid-size crawler excavators in the industry at the coming Bauma exhibition.

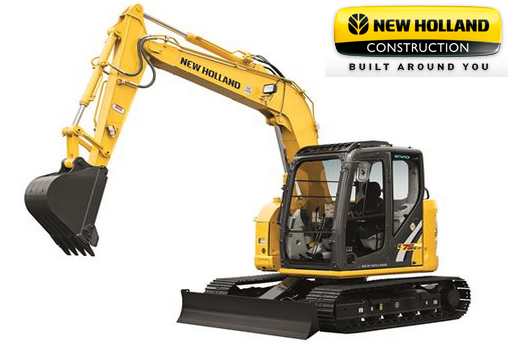

The E75C SR and E85C MSR raise the bar on the excellent performance and fuel economy New Holland’s midi excavators are known for:

  • More power with the CEGR + DOC Tier 4 Final solution and high efficiency electro-hydraulic controls
  • Up to 31.4% fuel savings with the unique Intelligent Total Control System and new ECO mode
  • Best-in-class controllability and swing speed with the new 3-pump hydraulic system
  • Extra quiet operation at just 69 dB(A) inside the cab with exclusive iNDr system
  • More comfort and safety with the new EVO cab

Low operating costs with simplified maintenance and features designed for reliability

Top-notch performance with up to 31.4% fuel savings
The E75C SR and E85C MSR run a highly reliable direct injection turbo-charged engine that delivers a powerful performance. Both models meet Tier 4 Final emissions standards with Cooled Exhaust Gas Recirculation (CEGR) technology combined with a simple Diesel Oxidation Catalyst (DOC) after-treatment system. This solution is so efficient that it does not require an active regeneration of the Particulate Matter filter, so that all the fuel goes to power the machine. New Holland has based its Tier 4 final solution on CEGR technology for light duty engines below 75 kW, where the compact dimensions of the machines create a space constraint. As emissions standards become increasingly stringent, New Holland has taken action developing products that minimise emissions, noise levels and fuel consumption, supporting the efforts of the most environmentally conscious municipalities that work hard to improve their inhabitants’ quality of life by cutting down on all vehicles’ polluting emissions.

The E75C SR and E85C MSR are designed for fuel efficiency, with features such as the standard Auto-Idle function that ensures no fuel is wasted by automatically reducing engine speed when the control levers are in neutral.

The two models feature a new version of the unique Intelligent Total Control System (ITCS) that controls all the machines’ functions.

The system relies on pressure sensors and a pump-solenoid valve to ensure a quick response to sudden changes in hydraulic load while minimising wasted output. The result is up to 31.4% fuel savings with variable power control, optimised engine speed and pump torque in all operating conditions: performance and fuel efficiency taken to new heights.

Both models feature as standard three working modes: H-mode delivers maximum performance in heavy-duty applications; S-mode ensures low fuel consumption in normal operations and the new ECO-mode, designed to maximise fuel savings without compromising on performance.

All these features work together to achieve a dramatic reduction in fuel consumption: in ECO mode the E75C SR and E85C MSR can save up to 31.4% fuel compared to the E70B SR and E80B MSR models they replace.

Best-in-class controllability with high efficiency hydraulics
New Holland midi excavators are known for their precision and responsiveness. Controllability in the E75C SR and E85C MSR has been further improved, especially where simultaneous movements are required. The new hydraulic system relies on three pumps coordinated by an electro-hydraulic actuator. Separate pumps for travel and dozer operation mean that there is no hydraulic interference, resulting in these machines’ exceptional accuracy.

The new hydraulic system also delivers best-in-class swing speed at 11.5 RPM and outstanding drawbar pull force at 76.8 kN.

Ultra quiet operation and efficient cooling with unique iNDr
New Holland’s exclusive integrated Noise & Dust reduction (iNDr) system successfully addresses the two key issues for all cooling systems: noise and dust. The answer is effective air flow management: incoming air is driven through a filter, so that only clean air enters the engine. It is then extracted from the engine through a duct, bypassing holes and joints therefore dramatically reducing noise, and exits through specially designed openings. This patented system has multiple advantages: ultra quiet operation at just 69 dB(A), similar to the noise levels inside a luxury car; easy maintenance, as it is sufficient to clean the filter to keep the entire cooling system running perfectly; no risk of clogging the cooling system.

The comfort and safety of a big machine cab in a compact size model
The E75C SR and E85C MSR present as compact crawler excavators rather than large mini excavators: the EVO cab provides the superior comfort of big equipment, with wide access, spacious interior and ample legroom. The full size glass window on the right provides unimpeded visibility. In addition, both models will please even the most demanding customers, as they include as standard many features from the heavy line, such as the automatic air conditioning, easy-to-ready digital cluster, two-speaker FM/AM radio, reclining and sliding seat and wide arm rests.

The EVO cab is compliant with ROPS and FOPS Level II standards, which means maximum safety for the operator in virtually all situations. For extreme applications, operator and machine safety can be further increased with the optional front guard and lower frame protections.

Low operating costs, easy maintenance, maximum reliability
A self-diagnostic function provides early warning of any malfunctions to the electrical system and alerts when maintenance is due.
Maintenance is quick, with easy access to all main service components, while a self-diagnostic function provides early warning of any electrical system malfunctions and alerts when maintenance is due. Operating costs are reduced by the long service intervals of 5,000 hours for hydraulic oil and 1,000 hours for oil filters, while the double-element air filter has twice the service life of previous air cleaners. The iNDr system is designed for reliability, as its filter blocks dust from entering the engine and is easy to check and clean.
